Cable Portable Scales

  1. Home
  2. Diniargeo
  3. Portable Scales

Portable Truck Scales

Diniargeo S.r.l adalah perusahaa pabrikan dari ITALIA yang memproduksi timabangan sejak 100 tahun yang lalu hingga saat ini, mulai dari timbangan kecil, menengah dan berat untuk memenuhi pasar dunia.

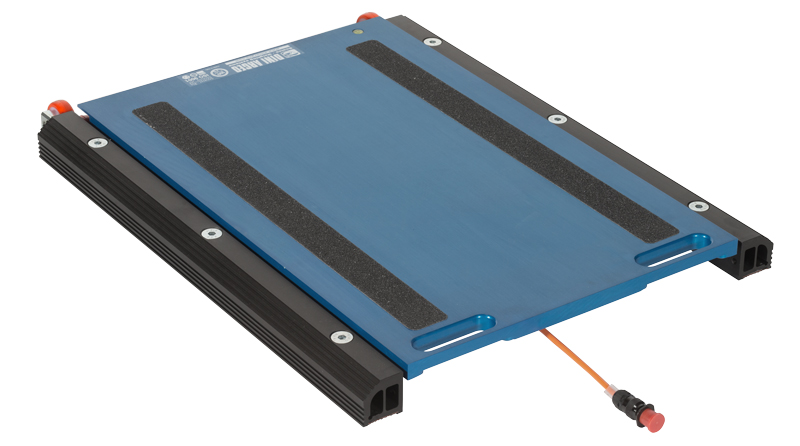

Portable Scales WWSE

Portable Scales Model WWSE adalah Plat timbangan portable dengan sistem Kabel yang terhubung dengan portable indikator yang dirancang untuk mengukur beban kendaraan secara portable yang dapat dipindah-pindah, dengan kemapuan ukur tehadap kendaraan besar (van, truk, tanker, trailer traktor, dll.); timbangan ini sangat akurat dan kuat, dengan memperhatikan detail setiap penimbangannya.

Load Capacity :

  1. WWSE6T-1 : 6000kg / single platform
  2. WWSE10T-1 : 10000kg / single platform
  3. WWSE15T-1 : 15000kg / single platform

Features :

  1. Pad dimensions: 700 x 561mm.
    1. Height 58mm.
    2. Weight approximately: 26kg.
    3. Loading surface: 700 x 450mm.
  2. Dual handle for easy handling.
  3. Fitted with wheels for pad transport.
  4. Sturdy structure, made in special alluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
  5. 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
  6. IP68 stainless steel load cells.
  7. IP68 hermetic junction box.
  8. Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
  9. Extremely simple and reliable connection of the scale to the weight indicator.
  10. The WWS pads are patented; the number is 1.342.302.
  11. Available in legal for trade approved version.
  12. Available in high resolution version.
  13. Available upon price estimate in Atex version for 1&21 e 2&22 zones.

Timbangan model WWSE ini didukung dengan portable display yang terhubung melalui cable koneksi dari platform ke indikator. Produk ini dibuat dan dirancang oleh teknisi handal dari italia, sehingga kualitas dan hasil ukur tidak diragukan lagi. Dilengkapi dengan roda terintegrasi untuk kemudahan transportasi dan pemosisian. Sangat cocok untuk penimbangan dinamis.

  1. Telah memenuhi Standar CE-M
  2. Deklarasi kesesuaian UE yang dicetak, sertifikat verifikasi UE, sertifikat uji, dan buku metrologi (unduh gratis dari situs web kami, hanya untuk produk CE-M yang disetujui)
  3. "WWSE" 700 x 561 x 58mm

WWS-R: Additional on/off ramps

  1. LMEK12: "Easy Level" kit, for WWSE. Consisting of 12 levelling modules and 4 ramps.
  2. WWSER: Aluminium ramp for WWSE. Dimensions 700 x 150 x 30mm.
WWS-R-1 WWS-R-2 WWS-R-3

Main connectable indicators

  1. DFWKRP-3 :
    1. For analogue WWS (WWS...-y) only. Indicator with transport case and integrated printer. Fitted with specific programme for vehicle weighing, 17-key keypad, backlit display and time/date. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series)
  2. 3590EKR-3 :
    1. For analogue WWS (WWS...-y) only. Indicator with transport case, printer and AF09 software. 25-key keypad, LED display and backlit graphic LCD display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
  3. 3590ETKR-3 :
    1. For analogue WWS (WWS...-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
Indicator DFWKRP-3 Indicator 3590EKR-3 Indicator 3590ETKR-3

Software

  1. AF03 :
    1. Software for weighbridges, input/output vehicle. For 3590 and CPW weight indicators.
  2. AF08 :
    1. Software for static wheel and axle weighing with 2 or more pads.
  3. AF09 :
    1. Software for dynamic and static axle weighing with 1 or 2 pads.
