3590ETKR "TOUCH": Touch Screen weight indicator with transport case

Diniargeo S.r.l adalah perusahaa pabrikan dari ITALIA yang memproduksi timabangan sejak 100 tahun yang lalu hingga saat ini, mulai dari timbangan kecil, menengah dan berat untuk memenuhi pasar dunia.

Indicator Scales 3590ETKR

Indikator 3590ETKR berat digital dengan tampilan Layar Sentuh yang besar, cocok untuk menimbang kendaraan, pesawat, dan benda dengan banyak titik penyangga. Ini memungkinkan visualisasi semua data penimbangan dan penyesuaian layar, menyederhanakan operasi pengguna. Dilengkapi dengan 3 port serial, protokol transmisi untuk komunikasi data, hasil cetak yang dapat dikonfigurasi sepenuhnya, memori alibi terintegrasi, dan port untuk koneksi ke pembaca barcode/badge. Dapat disetujui CE-M (OIML R-76 / EN 45501).

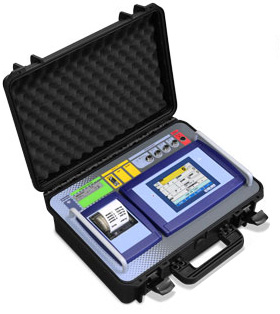

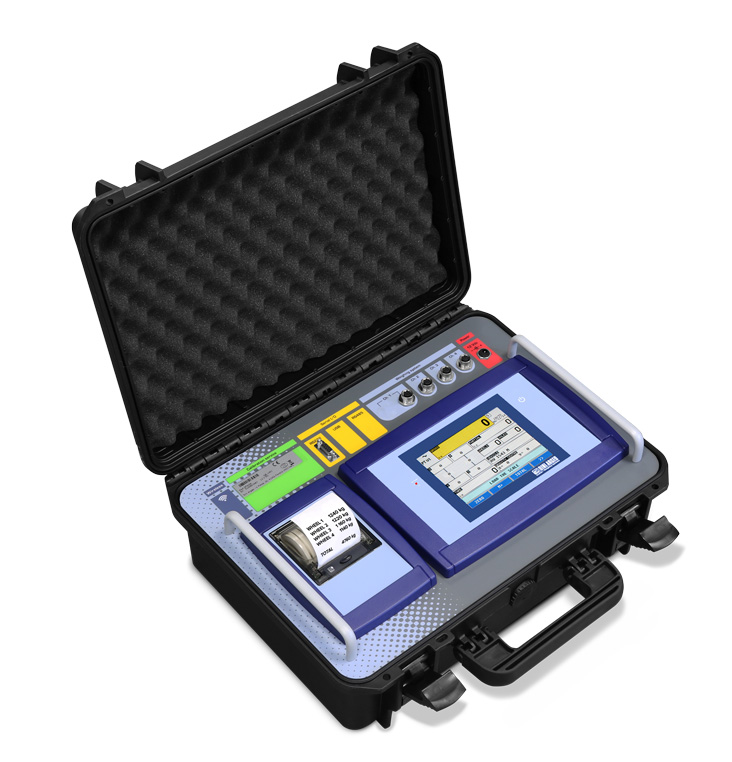

Indicator 3590ETKR-1 Indicator 3590ETKR-2 Indicator Case

I/O SECTION

  1. Available on panel:
    1. One RS232 serial ports, for connection to PC, on 9-pole connector.
  2. Available on internal side:
    1. 1 RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
    2. 1 RS232 serial port, for connection to printer, remote scale, badge reader, or digital load cells.
    3. Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
    4. 4 optoisolated outputs (optional).
    5. 2 optoisolated inputs (optional).

COMPLETELY CUSTOMIZABLE SCREENS

  1. Thanks to the programmable Touch Screen Display, you can create custom-made interfaces for any application:
  2. The "Dini Display Tool" is a PC software which allows you to quickly customize the TOUCH SCREEN.
  1. EU Type Examination Certificate (45501:2015)
  2. OIML R76
  3. OIML R51 - MID
  4. OIML R134 (AF09)
M12 Connector M12 Connector

Main Features:

  1. ABS transport case, with housing for the indicator and space for extra accessories.
  2. 3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.
  3. Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
  4. Multilanguage software.
  5. QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen, selectable.
  6. Dimensions: 325x460x170 mm. Weight: about 5kg.
  7. Fitted with attached thermal printer.
  8. Real time clock and permanent data storage.
  9. Fitted alibi memory, integrated on the motherboard.
  10. Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
  11. Functions available with DINITOOLS utility
    1. Configuration, data entry and print formatting.
    2. Recording and filing of all the information on PC.
    3. Complete retrieval of the configuration.
    4. Instrument calibration with numeric values.
    5. Customization of the screens.
  12. 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
  13. 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
  14. Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
  15. Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
  16. Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  17. Connectable to printers and labellers with free programmation of the printout formats.
  18. Power supply through built-in rechargeable battery, the operating time is of about 10 hours.
