Wireless Portable Truck Scales

Diniargeo S.r.l adalah perusahaa pabrikan dari ITALIA yang memproduksi timabangan sejak 100 tahun yang lalu hingga saat ini, mulai dari timbangan kecil, menengah dan berat untuk memenuhi pasar dunia.

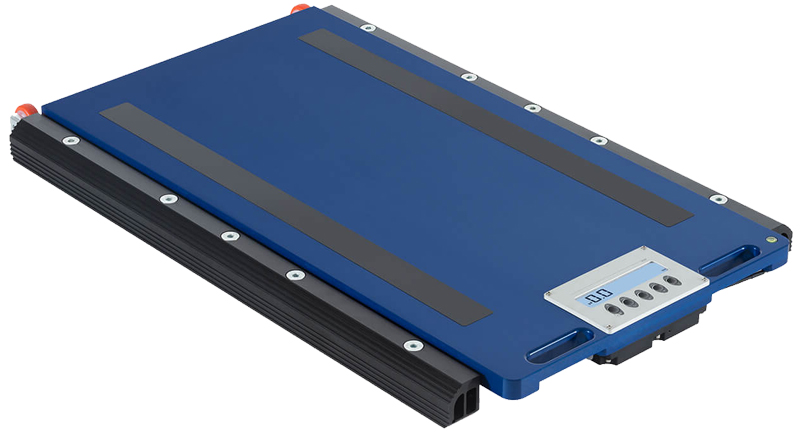

Portable Scales WWSE-RF

Wireless Portable Truck Scales WWSE-RF adalah Plat timbangan portable wireless (tanpa kable) yang dirancang untuk mengukur beban kendaraan secara portable yang dapat dipindah-pindah dengan kemapuan ukur terhadap kendaraan besar (van, truk, tanker, trailer traktor, dll.); timbangan ini sangat akurat dan kuat, dengan memperhatikan detail setiap penimbangannya.

Load Capacity :

  1. WWSE2G4-6T-1 : 6000kg / single platform
  2. WWSE2G4-10T-1 : 10000kg / single platform
  3. WWSE2G4-15T-1 : 15000kg / single platform

Features :

  1. Pad dimensions: 750 x 450mm.
    1. Height 58mm.
    2. Weight approximately: 28kg.
    3. Loading surface: 603 x 450mm.
  2. Handle for easy handling.
  3. Equipped with wheels for pad transport.
  4. Sturdy structure, made in special alluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
  5. IP68 connector on platform side and new M12 connector on weight indicator side.
  6. IP68 stainless steel load cells.
  7. IP68 hermetic junction box.
  8. Stainless steel load cells.
  9. Overall IP68 protection.
  10. Sturdy built-in weight indicator with waterproof keyboard and backlit display.
  11. Built-in radio module for weight transmission to a remote indicator or external device. Max. functioning distance: 50m.
  12. Integrated wheels for easy transport and positioning.
  13. Power supply: internal rechargeable battery (about 40 h battery life) and charger included (to not use as power adaptor).
  14. Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
  15. The WWS pads are patented; the number is 1.342.302.
  16. Availables in legal for trade approved version.
  17. Availables in high resolution version.

Timbangan model WWSE-RF ini didukung dengan portable display sistem koneksi tanpa cable (Radio Sinyal) yang terhubung melalui cable koneksi dari platform ke indikator. Produk ini dibuat dan dirancang oleh teknisi handal dari italia, sehingga kualitas dan hasil ukur tidak diragukan lagi.

  1. Telah memenuhi Standar CE-M
  2. Deklarasi kesesuaian UE yang dicetak, sertifikat verifikasi UE, sertifikat uji, dan buku metrologi (unduh gratis dari situs web kami, hanya untuk produk CE-M yang disetujui)
  3. "WWSE-RF" 750 x 450 x 58 mm.

WWS-R: Additional on/off ramps

  1. LMEK12: "Easy Level" kit, for WWSE. Consisting of 12 levelling modules and 4 ramps.
  2. Aluminium ramp for WWSE. Dimensions 700 x 150 x 30mm.
WWS-R-1 WWS-R-2 WWS-R-3

Main connectable indicators

  1. DFWKRP-3 :
    1. For analogue WWS (WWS...-y) only. Indicator with transport case and integrated printer. Fitted with specific programme for vehicle weighing, 17-key keypad, backlit display and time/date. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series)
  2. 3590EKR-3 :
    1. For analogue WWS (WWS...-y) only. Indicator with transport case, printer and AF09 software. 25-key keypad, LED display and backlit graphic LCD display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
  3. 3590ETKR-3 :
    1. For analogue WWS (WWS...-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
Indicator DFWKRP-3 Indicator 3590EKR-3 Indicator 3590ETKR-3

Software

  1. AF03 :
    1. Software for weighbridges, input/output vehicle. For 3590 and CPW weight indicators.
  2. AF08 :
    1. Software for static wheel and axle weighing with 2 or more pads.
  3. AF09 :
    1. Software for dynamic and static axle weighing with 1 or 2 pads.
